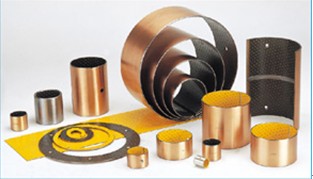

Bearing >> Bushing >> SF-2 border lubricating it lubricate bearing last matrices bearing

SF-2 border, in the middle of frit by ball type powders bronze, the surface rolls the modified polyformaldehyde (POM ), contain the oil storage hole . It is suitable for the normal atmospheric temperature condition and heavily loaded place of low-speed , replaces the traditional copper set, lower costs as well as lengthen service life . The products are applied to car chassis , forging and pressing lathe , metallurgical mining machinery extensively,engineering machinery, water and electricity, steel rolling in fields such as the trade ,etc.

Technicial Info.





Load Capacity 250/mm2
Temperature Limit

-400C~+1300C

Speed Limit 2.5m/s
Friction Coef 0.05~0.25
PV Limit(Dry) 2.8N/mm2.m/s
PV Limit(Oil) 22N/mm2.m/s
