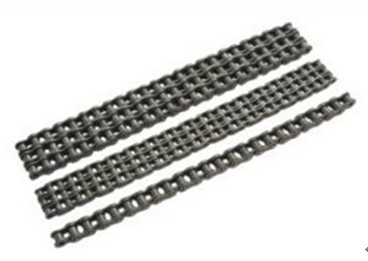

Standard roller chains(A series)

DIN ISO	ANSI		Roller	Width between		Pin		Inner	Uinimate	Average	Weight
Chain No.	Chain	Pitch	diameter	inner	diameter	length		plant	tensile	tensile	per
	No.			plates				depth	strength	strength	meter
		P	d1 max	b1 min	d2max	L max	Lc max	h2 max	Q min	Q0 min	q
		mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
*04C-1	*25	6.35	3.3	3.18	2.31	7.9	8.4	6	3.5	4.4	0.15
*064-1	*35	9.525	5.08	4.77	3.58	12.4	13.17	9	7.9	9.8	0.33
085-1	41	12.7	7.77	6.25	3.58	13.75	15	9.91	6.67	11.8	0.41
08A-1	40	12.7	7.95	7.85	3.96	16.6	17.8	12	14.1	17	0.62
10A-1	50	15.875	10.16	9.4	5.08	2.07	22.2	15.09	22.2	26.4	1.02
12A-1	60	19.05	11.91	3.57	5.94	25.9	27.7	18	31.8	38.8	1.5
16A-1	80	25.4	15.88	15.75	7.92	32.7	35	24	56.7	64.9	2.6
20A-1	100	31.75	19.05	18.9	9.53	40.4	44.7	30	88.5	101.8	3.9
24A-1	120	38.1	22.23	25.22	11.1	50.3	54.3	35.7	127	147	5.62
28A-1	140	44.45	25.4	25.22	12.7	54.4	59	41	172.4	197.7	7.5
32A-1	160	50.8	28.58	31.55	14.27	64.8	69.6	47.8	226.8	260.2	10.1
36A-1	180	57.15	35.71	35.48	17.46	72.8	78.6	53.6	280.2	327.8	13.4
40A-1	200	63.5	39.68	37.85	19.85	80.3	87.2	60	353.8	405	16.15
48A-1	240	76.2	47.63	47.35	23.81	95.5	103	72.39	510.3	585.4	23.2
