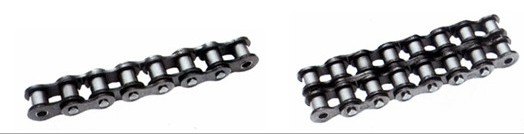

Standard roller chain(B series)

DIN ISO		Roller	Width between		Pin		Inner	Uinimate	Average	Weight
Chain No.	Pitch	diameter	inner	diameter	length		plant	tensile	tensile	per
			plates				depth	strength	strength	meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	Q min	Q0 min	q
	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
04B-1	6	4	2.8	1.85	6.8	7.8	5	3	3.2	0.11
05B-1	8	5	3	2.31	8.2	8.9	7.1	5	5.8	0.2
06B-1	9.525	6.35	5.72	3.28	13.15	14.1	8.2	9.1	10	0.41
08B-1	12.7	8.51	7.75	4.45	16.7	18.2	11.8	18	19.3	0.69
10B-1	15.875	10.16	9.65	5.08	19.5	20.9	14.7	82.4	26.5	0.93
12B-1	19.05	12.07	11.68	5.72	22.5	24.2	16	29	32.2	1.15
16B-1	25.4	15.88	17.02	8.28	36.1	37.4	21	60	70.5	2.71
20B-1	31.75	19.05	19.56	10.19	41.3	45	26.4	95	101.3	3.7
24B-1	38.1	15.4	25.4	14.63	53.4	57.8	33.2	160	174	7.1
28B-1	44.45	27.94	30.99	15.9	65.1	69.5	36.7	200	214	8.5
32B-1	50.8	29.21	30.99	17.81	66	71	42	250	267.5	10.25
40B-1	63.5	39.37	38.1	22.89	82.2	89.2	52.96	355	379.8	16.35
48B-1	76.2	48.26	45.72	29.24	99.1	107	63.8	560	599.2	25
